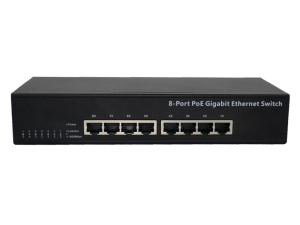

8 Port RJ45 Port Desktop PoE Switch IEEE 802.3x 10 / 100 / 1000M

Product Categories
Fiberroad Technology Co., Limited
Contact Now

8 Port RJ45 Port Desktop PoE Switch IEEE 802.3x 10 / 100 / 1000M

Place of Origin : Shenzhen

Brand Name : Fiberroad

Certification : CE ROHS

Model Number : FR-POES-G8

MOQ : 1pc

Price : Pls send request details

Packaging Details : Standard neutral or brand packing

Delivery Time : 2-3 workdays

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs/Month

Name : POE Switch

Output Type : Single

Network Transfer Data Rate : 10/100/1000Mbps

Communication Mode : Full-Duplex & Half-Duplex

Ports : 8

Input Voltage : 220V

Contact Now


8 Port RJ45 Port Desktop PoE Switch IEEE 802.3x 10 / 100 / 1000M
The 8-port 10/100/1000M Desktop PoE Switch provides the seamless network connection. It integrates 1000Mbps Fast Ethernet and 100Mbps Ethernet network capabilities. It is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the SL-1008GP 8-port 10/100/1000M Desktop PoE Switch is a great selection for expanding your home or office network.
Features:
Supports PoE power up to 13W for each PoE port
Supports PoE power up to 120W for all PoE ports
Supports PoE IEEE 802.3af compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
1K entry MAC address table of the SL-SF1008GP with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
External power adapter supply

Overload Arrangement

It has the priority* function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 120W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Port Priority Function

*Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 13w (maximum power per port is 13W), the system power is 120w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 13w, and Port3 will use 10w, and no power will be supplied to Port 4.

Specification

HARDWARE FEATURES
Interface 8 10/100/1000Mbps RJ45 Ports
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
PoE Ports (RJ45) 4
Backbound Bandwidth 16Gbps
Mac Address Table 8K
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
Dimensions (W X D X H)
  • 225mm*110mm*41mm

SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

OTHERS
Package Contents Cable/DSL Router, Quick installation Guide, CD-ROM, Power Adapter, RJ-15 Ethernet Cable,Warranty Card
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
