POF Plastic Optical Fiber Converters

Name : plastic optical fibre

Fiber type : POF

Standard : IEEE 802.3u 10/100Base-TX and 100Base-FX

Wavelength : 650nm

Data rate : 10/100Mbps (TP) 100Mbps (FX)

Connector type : RJ-45 port (Auto-MDI/MDI-X) Twisted Pair, EIA568

Place of Origin : China

Brand Name : Fiberroad

MOQ : 10pcs

Packaging Details : Standard neutral or brand packing

Delivery Time : 2-3 workdays

Payment Terms : 100% T/T advance

Supply Ability : 5000pcs/Month

Price : Pls send request details

Contact Now

POF Plastic Optical Fiber Converters

RJ-45 Twisted Pair POF High Performance Plastic Optical Fiber Converters of 5 UTP TP Cable

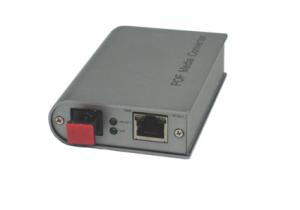

POF media converter is a high performance and commercial grade Plastic Optical Fiber (POF) media converter interfacing standard 10/100BaseTX to 100BaseFX Ethernet over Plastic Optical Fiber.

Characteristics :
Standard	IEEE 802.3u 10/100Base-TX and 100Base-FX
Data rate	10/100Mbps (TP) 100Mbps (FX)
Polymer Optical Fiber (POF) :
Fiber type	POF
Wavelength	650nm
Link length	Up to 100 m
Connector type	Optolock
Copper :
TP cable	4 pair Cat. 3 or 5 UTP
Link length	Up to 100 m * for full duplex application
Connector type	RJ-45 port (Auto-MDI/MDI-X) Twisted Pair, EIA568
LED indicators	PWR, FX-LNK/ACT , TP-LNK/ACT , 100M
Power requirement	5VDC, 1A max.
Power supply	100 – 240 V ~
Plug type power supply	Euro connector
Temperature Operation	0°C – 50°C
Stock	-20°C – 70°C
Reliability	> 50' 000 h ( 25°C )
Dimensions (W x D x H)	98x67x 24mm
